CMM COMPASS Select by Operation Method Manual-method

Manual-method

Contents.

Based on their operation styles, CMMs are divided into "manual-method" and "CNC (Computer Numerical Control)-method" machines. Manual-method CMMs are operated by hand using controllers or other devices.

Here, we will introduce manual-method CMMs from various manufacturers. If you are considering the implementation of a manual-method CMM, this information will be useful for you.

CRYSTA-Plus (Mitutoyo)

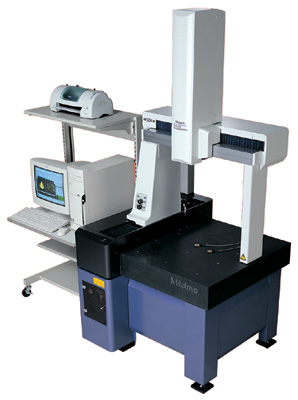

CRYSTA-Plus image
Source: Mitutoyo website (https://www2.mitutoyo.co.jp/eng/new/news/2002/02_14.html)

Mitutoyo's Crysta-Plus M500/700 series was designed as a high-precision manual coordinate measuring machine easy to use in manufacturing settings. It guarantees an error of indication of E=(3.5+4.5L/1000) μm. The knobs located on the front of the body allow for clamping in the X, Y, and Z axes, facilitating precise positioning for measurements. It maintains stable precision even in unstable temperature environments like workshop floors, with its temperature compensation function covering a wide range from 16°C to 26°C.

Considering that many users attach a centering microscope, the Crysta-Plus M500/700 series features a fine feed system for X and Y axis adjustments in one location, significantly improving operability. Optional lighting systems can be attached to the end of the Z-axis. These meticulously designed features precisely meet user needs.

Especially suited for process control at production sites and other locations, it allows real-time monitoring of measurement results and detects abnormalities in work processes, preventing the production of defective products. The Crysta-Plus M500/700 series offers flexibility under a wide range of temperature conditions and supports workpiece diagrams, catering to user requirements.

This series, combines usability with high precision in a manual-method CMM, supporting quality control in manufacturing processes and further strengthening Mitutoyo's leadership in manual CMMs.

ALPHA (Hexagon Metrology)

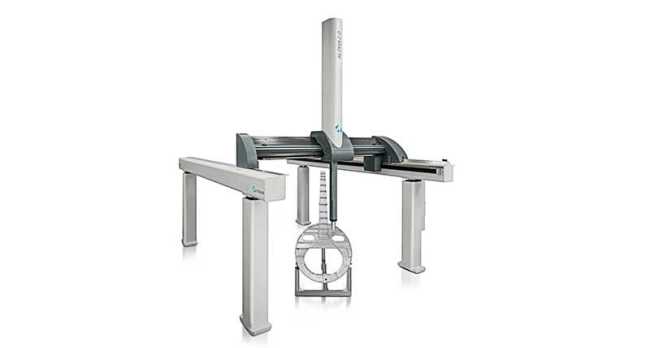

ALPHA image
Source: Hexagon website (https://hexagon.com/products/alpha-2-0)

The ALPHA series from Hexagon Metrology is a flexible CMM suitable for dimensional measurement of large cast iron and machined parts. By equipping it with an 3D scanning laser head and a continuous servo wrist, it can quickly measure complex contour shapes (optional). A bellows cover can also be added, enabling the CMM to operate even in dirty environments. There are two versions: ALPHA Classic and ALPHA Performance.
