Here, we introduce the representative CMMs by Mitutoyo and summarize the company's history, distinguishing features as a manufacturer, and the types of products suited for different work environments.
A bridge-type CMM that combines high accuracy, speed, and flexibility. It can measure complex shapes like curves and contours rapidly and precisely. It is also equipped with a temperature compensation feature to maintain accuracy in temperature-sensitive environments. A wide range of probes are available, allowing for customizable configurations to suit different sites. This versatile model is widely used in various fields.

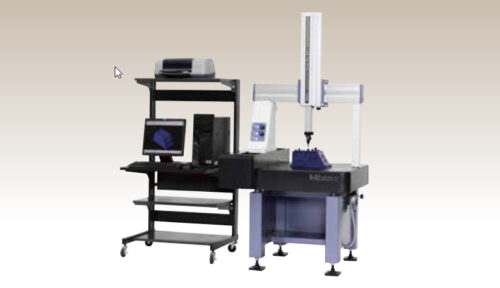

A manual CMM known for maintaining high precision over the long term. It comes standard with a temperature compensation function, ensuring accuracy in temperature ranges from 15-30°C. Designed with operability in mind, it features a hand-held illumination device and a disable switch to prevent erroneous inputs. It can also be equipped with a centering microscope for thin objects.

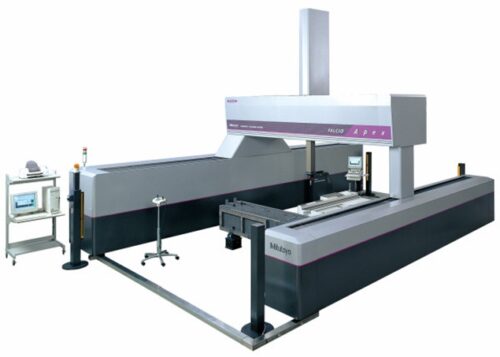

A gantry-type CMM designed for measuring large and heavy products. It has an original structure (moving gate, foundation-mounted) and boasts high measurement accuracy and drive speed. An optional system (MOVAC) is available to automatically correct accuracy degradation due to foundation deformation.

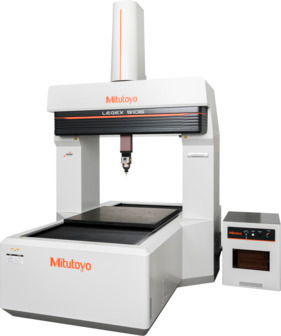

A CNC CMM with ultra-high precision, eliminating as many error factors as possible. It achieves a maximum permissible length measuring error of E0, MPE= (0.23+0.7L/1000) μm, worthy of its "master model" name. The sealed structure and stress analysis using FEM structural simulation minimize deformation due to load changes.

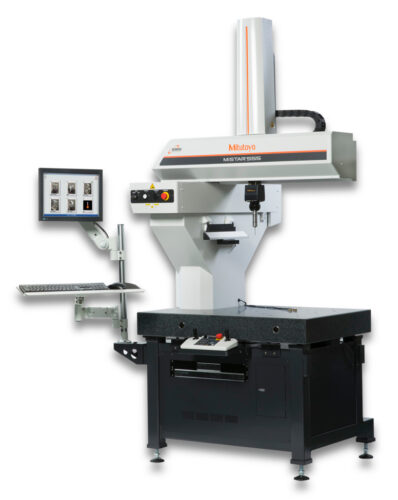

An environmentally resistant shop-floor type CMM. Its 3-sided open structure boasts a maximum drive speed of 606mm/s and maximum drive acceleration of 2660mm/s2, making it usable right next to production lines or machining equipment. It is equipped with an intuitive Quick Launcher for screen touch operations and Condition Monitor for complete visualization of the factory.
Founded in 1934, Mitutoyo is a comprehensive manufacturer of precision measuring instruments. With the business philosophy of "contributing to society through precision measurement," it has a long history of specializing in measurement technology research and product development.
The main product lineup includes measuring instruments, sensor & embedded units, measuring tools, and related measurement software & data management. Their CMM lineup includes highly versatile models, as well as models optimized for high-precision measurement and large workpieces.
Mitutoyo's basic policy of "holding key technologies in-house" not only ensures reliability in measurement technology but also encompasses software, optics, and mechanical elements. The company is also engaged in research and development of advanced technologies that anticipate the needs of the times.
One such example is the "optical frequency comb device," which can be likened to a ruler of light frequency. This device is so precise that even when measuring the distance from the Earth to the Moon, the error is only about the thickness of a human hair.
Mitutoyo's excellent measurement technology is highly regarded worldwide. Although production is based in Japan, they operate globally with locations in 30 countries and a network of over 60 distributors. In Japan, they have showrooms where the latest measuring equipment and technology can be experienced.
They also offer comprehensive support and services, including call-out and pick-up services, and visualization services that remotely monitor the operational status of equipment. Latest software and manuals can be downloaded from a dedicated website, and they provide inquiry support by engineers.
As a comprehensive manufacturer of precision measuring instruments, Mitutoyo not only provides equipment but is also proactive in the field of solution business. They have a strong track record of implementation in industries such as semiconductors, lenses, bearings, and medical devices.
Mitutoyo is recommended for companies seeking to enhance productivity efficiency at their sites or those who are new to precision measuring instruments and looking for effective utilization methods. In Japan, they have multiple showrooms, providing an accessible consultation environment.
Source: KEYENCE Website（https://www.keyence.com/products/measure-sys/cmm/xm/index_pr.jsp）
This CMM has a caliper-like feel, enabling even beginners to perform high-precision measurements. It can be carried without the need for temperature control, allowing for immediate measurements at any desired location and time. As it doesn't require a large installation space, it's a CMM with a low entry barrier.
Source: Carl Zeiss Website（https://www.zeiss.com/metrology/products/systems/cmm.html）
Utilizing linear drive on all axes, this CMM boasts high precision with a maximum permissible length measurement error of 0.3+L/1000μm, repeatability of ±0.2μm, and resolution of 0.001μm. The reduced occurrence of errors allows for a decrease in the need for remeasurement.
Source: Mitutoyo Website（https://www.mitutoyo.com/products/coordinate-measuring-machines/）
A CNC CMM that was first developed in 1976.
It features applications that respond to the demand for "Smart Factories" by allowing monitoring of operational status and maintenance management of the machine through the network.
